Introduction

Introduction

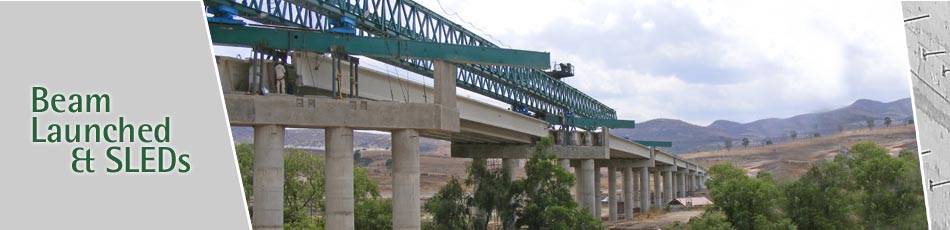

System designed for the use of a device that consists of a metallic structure build of modules that allow to take directly the load from the vehicle, displacing them longitudinal and transversely until placing them in its definitive place.

• ...top

Process

Phase 1

Device arrangement

Phase 2

Placing the beams with a “Dolly”

Phase 3

Beam and balance beam securing for longitudinal sliding through the device

Phase 4

Descending and positioning of the precast beams.

Phase 5

Once the Beams are mounted the device is displaced to the following span and the work phases are repeated
